QAbstractTableModel Q

[IknowQT]

void wSpectrum::InitTableWidget()
{
	QList<QPair<QString, QList<qreal>>> lstTemp;
	QPair<QString, QList<qreal>> pairTemp;

	pairTemp.first = "WaveLength";
	pairTemp.second = m_pSpectrumInfo->GetWaves();
	lstTemp.append(pairTemp);

	QPair<QString, QList<qreal>> pairTemp1;
	pairTemp1.first = "Data";
	pairTemp1.second.append(2.123);
	pairTemp1.second.append(1.9052);
	pairTemp1.second.append(2.0935);
	pairTemp1.second.append(5.29804);
	pairTemp1.second.append(4.712890);
	pairTemp1.second.append(3.132087);
	lstTemp.append(pairTemp1);

	m_pModel = new usrTableModel(lstTemp);
	this->ui.tableWidget->setModel(m_pModel);

	auto xAixs = std::minmax_element(lstTemp[0].second.begin(), lstTemp[0].second.end());
	m_pChart->axisX()->setRange(*xAixs.first, *xAixs.second);

	xAixs = std::minmax_element(lstTemp[1].second.begin(), lstTemp[1].second.end());
	m_pChart->axisY()->setRange(*xAixs.first, *xAixs.second);

	QValueAxis* axisx = qobject_cast<QValueAxis*>(m_pChart->axes(Qt::Horizontal).first());
	axisx->setTickCount(m_pSpectrumInfo->GetWaves().count());

	QLineSeries* pSeries = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper = new QVXYModelMapper(this);
	mapper->setXColumn(0);
	mapper->setYColumn(1);
	mapper->setSeries(pSeries);
	mapper->setModel(m_pModel);
	m_pChart->addSeries(pSeries);

	//AddChartSeries();

	// [테스트]
	QPair<QString, QList<qreal>> pairTemp2;
	pairTemp2.first = "Data";
	pairTemp2.second.append(1.123);
	pairTemp2.second.append(2.2052);
	pairTemp2.second.append(3.3935);
	pairTemp2.second.append(4.49804);
	pairTemp2.second.append(5.512890);
	pairTemp2.second.append(6.6132087);
	m_pModel->AppendData(pairTemp2);

	QLineSeries* pSeries1 = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper1 = new QVXYModelMapper(this);
	mapper1->setXColumn(2);
	mapper1->setYColumn(3);
	mapper1->setSeries(pSeries1);
	mapper1->setModel(m_pModel);
	m_pChart->addSeries(pSeries1);

	//AddChartSeries();
}

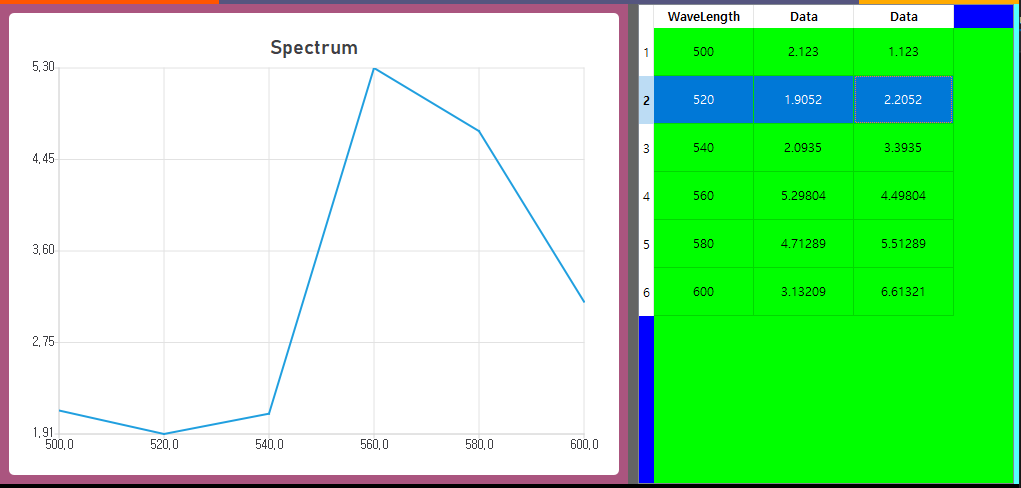

The line series of the first data is drawn normally. The second data line is not drawn.

When the model changes, the chart must also be updated.
I wonder how.

[IknowQT]

@IknowQT said in QAbstractTableModel Q:

void wSpectrum::InitTableWidget()
{
	QList<QPair<QString, QList<qreal>>> lstTemp;
	QPair<QString, QList<qreal>> pairTemp;

	pairTemp.first = "WaveLength";
	pairTemp.second = m_pSpectrumInfo->GetWaves();
	lstTemp.append(pairTemp);

	QPair<QString, QList<qreal>> pairTemp1;
	pairTemp1.first = "Data";
	pairTemp1.second.append(2.123);
	pairTemp1.second.append(1.9052);
	pairTemp1.second.append(2.0935);
	pairTemp1.second.append(5.29804);
	pairTemp1.second.append(4.712890);
	pairTemp1.second.append(3.132087);
	lstTemp.append(pairTemp1);

	m_pModel = new usrTableModel(lstTemp);
	this->ui.tableWidget->setModel(m_pModel);

	auto xAixs = std::minmax_element(lstTemp[0].second.begin(), lstTemp[0].second.end());
	m_pChart->axisX()->setRange(*xAixs.first, *xAixs.second);

	xAixs = std::minmax_element(lstTemp[1].second.begin(), lstTemp[1].second.end());
	m_pChart->axisY()->setRange(*xAixs.first, *xAixs.second);

	QValueAxis* axisx = qobject_cast<QValueAxis*>(m_pChart->axes(Qt::Horizontal).first());
	axisx->setTickCount(m_pSpectrumInfo->GetWaves().count());

	QLineSeries* pSeries = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper = new QVXYModelMapper(this);
	mapper->setXColumn(0);
	mapper->setYColumn(1);
	mapper->setSeries(pSeries);
	mapper->setModel(m_pModel);
	m_pChart->addSeries(pSeries);

	//AddChartSeries();

	// [테스트]
	QPair<QString, QList<qreal>> pairTemp2;
	pairTemp2.first = "Data";
	pairTemp2.second.append(1.123);
	pairTemp2.second.append(2.2052);
	pairTemp2.second.append(3.3935);
	pairTemp2.second.append(4.49804);
	pairTemp2.second.append(5.512890);
	pairTemp2.second.append(6.6132087);
	m_pModel->AppendData(pairTemp2);

	QLineSeries* pSeries1 = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper1 = new QVXYModelMapper(this);
	mapper1->setXColumn(2);
	mapper1->setYColumn(3);
	mapper1->setSeries(pSeries1);
	mapper1->setModel(m_pModel);
	m_pChart->addSeries(pSeries1);

	//AddChartSeries();
}

The line series of the first data is drawn normally. The second data line is not drawn.

When the model changes, the chart must also be updated.
I wonder how.

===================================================================

QLineSeries* pSeries = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper = new QVXYModelMapper(this);
	mapper->setXColumn(0);
	mapper->setYColumn(1);
	mapper->setSeries(pSeries);
	mapper->setModel(m_pModel);
	m_pChart->addSeries(pSeries);

	//AddChartSeries();

	// [테스트]
	QPair<QString, QList<qreal>> pairTemp2;
	pairTemp2.first = "Data";
	pairTemp2.second.append(1.123);
	pairTemp2.second.append(7.2052);
	pairTemp2.second.append(4.3935);
	pairTemp2.second.append(3.49804);
	pairTemp2.second.append(1.512890);
	pairTemp2.second.append(2.6132087);
	m_pModel->AppendData(pairTemp2);

	QLineSeries* pSeries1 = new QLineSeries(m_pChart);
	QVXYModelMapper* mapper1 = new QVXYModelMapper(this);
	mapper1->setXColumn(0);
	mapper1->setYColumn(2);
	mapper1->setSeries(pSeries1);
	mapper1->setModel(m_pModel);
	m_pChart->addSeries(pSeries1);

I set the Column of the first series mapper to 0, 1.
I set the Column of the second series mapper to 0, 2.
Then it prints normally.
I didn't fully understand the function of setXColumn. What function does it specifically do? I've looked at the documentation, but I don't understand.
