Is it possible to do that using spacer?



  • Hi,
    I have simple app: mainWindow with gridLayout and 4 labels in this grid.

    My code:

        grid = new QGridLayout;
        l1 = new QLabel;
        l2 = new QLabel;
        l3 = new QLabel;
        l4 = new QLabel;

        l1->setFixedSize(200,50);
        l2->setFixedSize(200,50);
        l3->setFixedSize(200,50);
        l4->setFixedSize(200,50);

        l1->setStyleSheet("QLabel {background:red}");
        l2->setStyleSheet("QLabel {background:blue}");
        l3->setStyleSheet("QLabel {background:yellow}");
        l4->setStyleSheet("QLabel {background:green}");

        centralWidget()->setLayout(grid);

        grid->addWidget(l1, 0,0);
        grid->addWidget(l2, 0,1);
        grid->addWidget(l3, 1,0,Qt::AlignLeft);
        grid->addWidget(l4, 1,1,Qt::AlignRight);

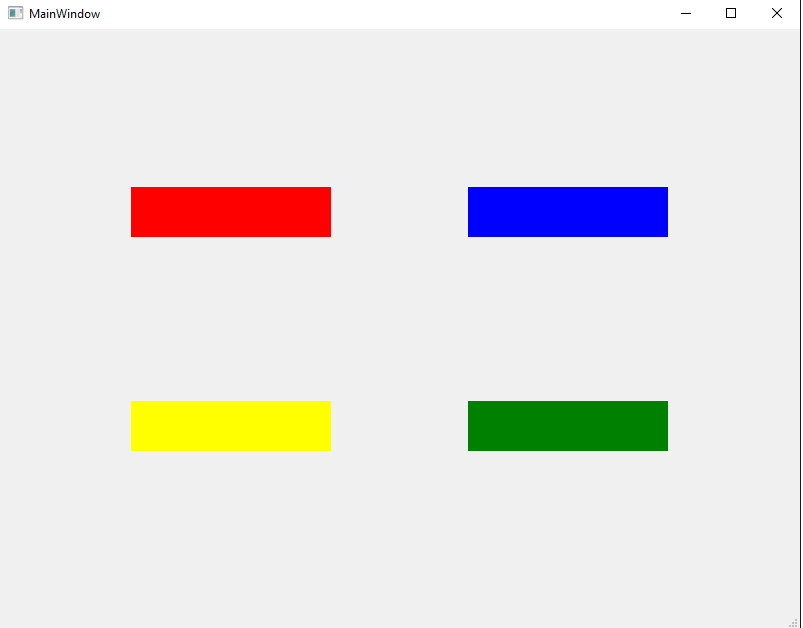

    Now I have:

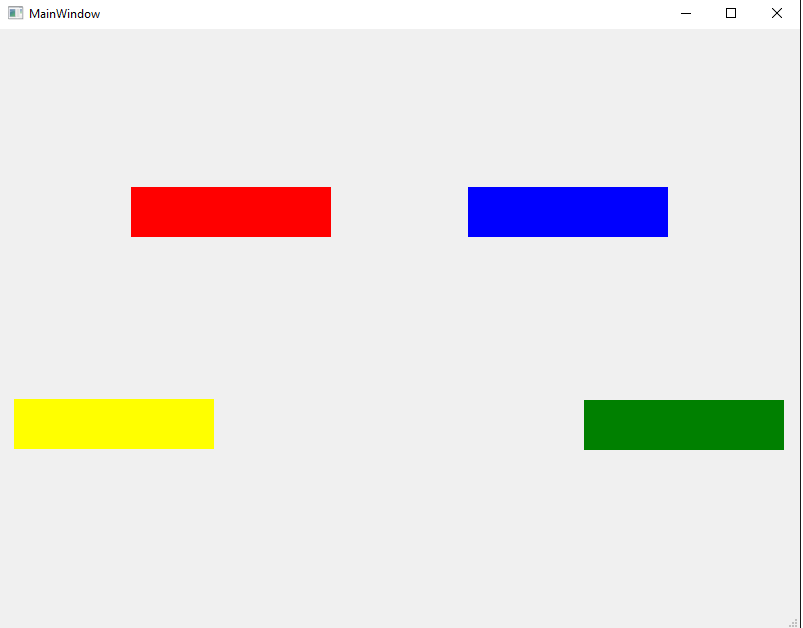

    But I would like to have:

    I know that I can use Spacer, but I don't know how.



  • @qwe3 said in Is it possible to do that using spacer?:

    I know that I can use Spacer, but I don't know how.

    No need. This works for me.

    grid->addWidget(l1, 0,0, Qt::AlignCenter);
    grid->addWidget(l2, 0,1, Qt::AlignCenter);
    grid->addWidget(l3, 1,0, Qt::AlignVCenter | Qt::AlignLeft);
    grid->addWidget(l4, 1,1, Qt::AlignVCenter | Qt::AlignRight);
