I want to place the controls in the center of the layout.

[IknowQT]

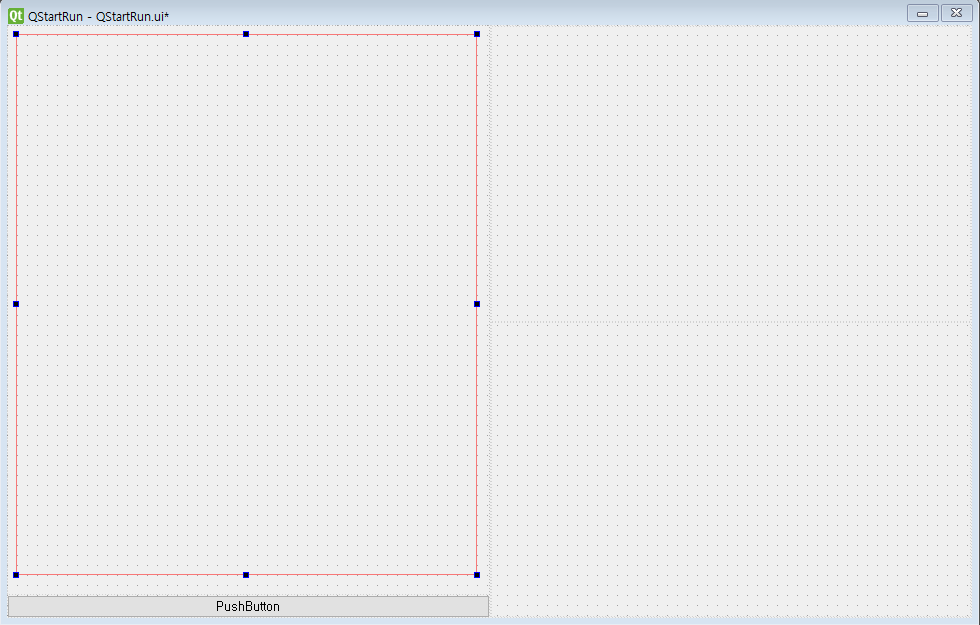

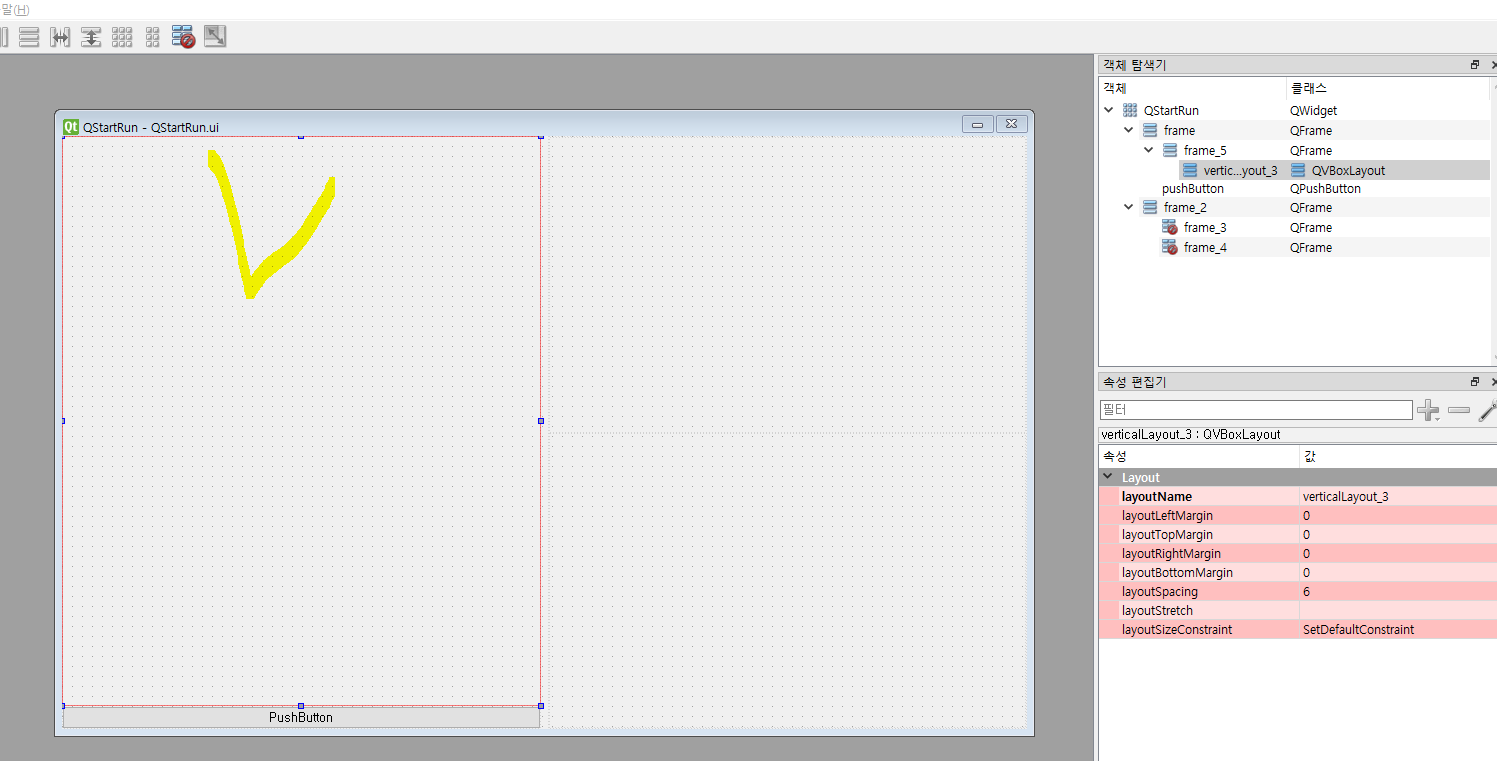

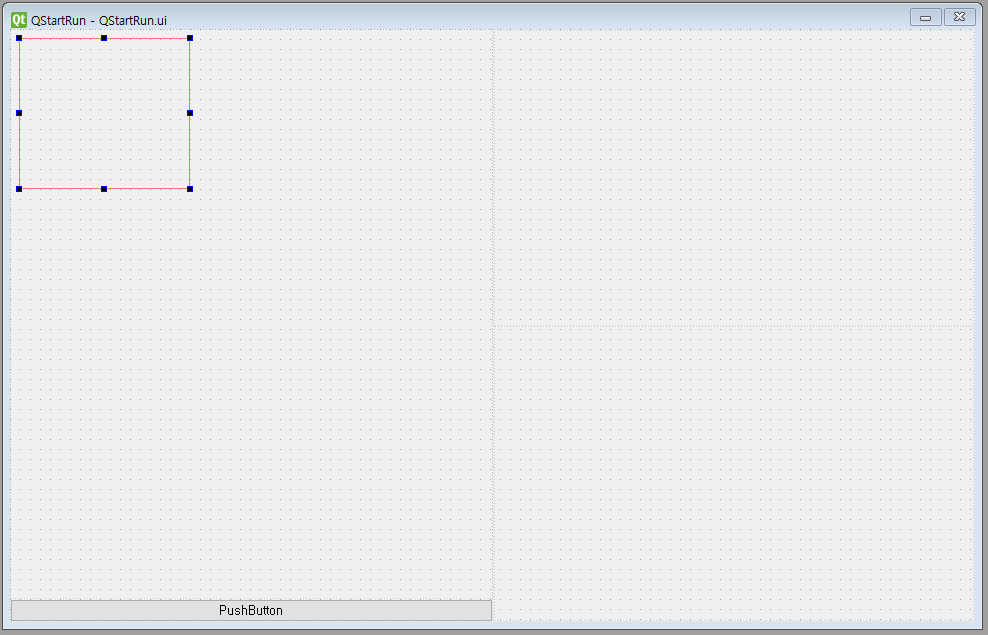

There's a layout like this, and I'm trying to addwidget a customized control on the checked layout, but when I do addwidget, it's always drawn on (0,0).
I want to go to the center of the checked layout. I tried to go to geometry().center().x().y, but no, I tried to use spacer, but the ui was broken overall. If I put spacer in the checked layout, is there a way to fix the size of the other layout?

[VRonin]

@IknowQT said in I want to place the controls in the center of the layout.:

I tried to use spacer

This is the correct way

but the ui was broken overall

How?

[Kent-Dorfman]

QGridLayout using the correct size policies for the widgets it contains

[IknowQT]

m_pProgress->move(this->size().width()/4 , this->size().height() );

This way, it won't move.
I did split 2 in the whole widget size to make sure the move worked, so I wanted to make sure it was in the middle, but it didn't move at all.

[mrjj]

@IknowQT

Hi
When a widget is inside a layout, you cannot move it manually.
It will be ignored.

You could use a GridLayout instead and set its aligment.

[IknowQT]

@mrjj

I'm trying to put the dynamic ui in the gridlayout, how do I put the properties?

this->ui.gridLayout_2->addWidget(m_pProgress, 1, 1, Qt::AlignCenter);

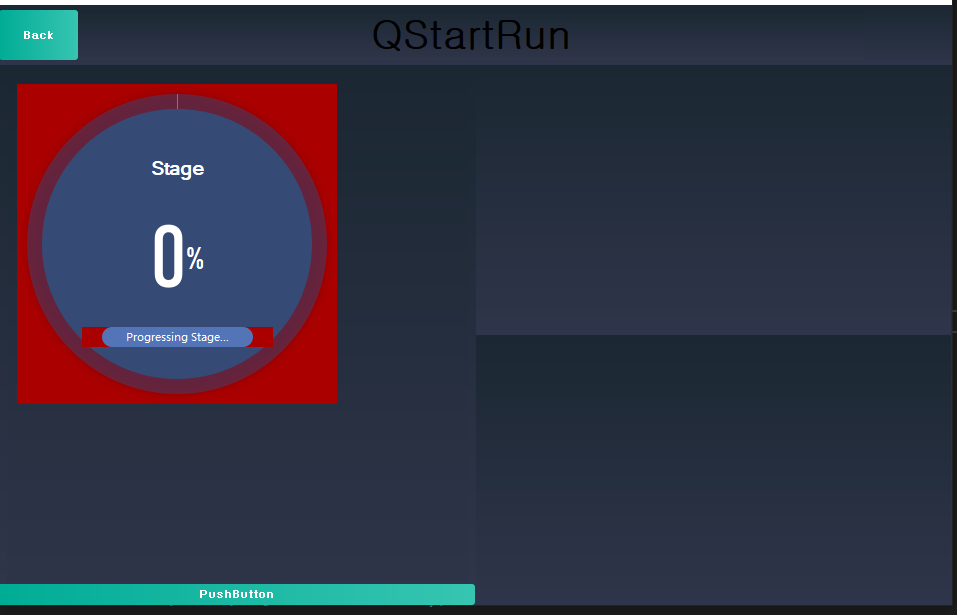

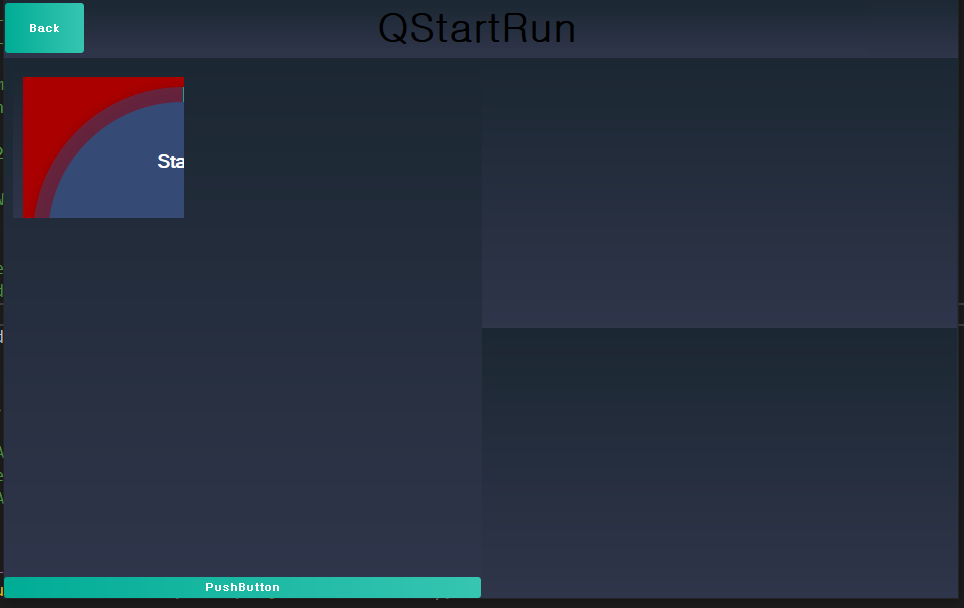

I put it in like this, but I can't see the ui. I think it's out of range.

[IknowQT]

@mrjj

Is it because the size of the widget I made is fixed or it is maintained regardless of the size of the layout?

How do I resize to fit the layout?

[mrjj]

Hi
The main issue i think is that the red layout shown is not inside another layout.
Those red ones are meant to be used with other layouts.

To apply a layout to that widget shown. Right click in and there is a layout menu.
