OpenGL fragmentShader to draw anti-clockwise



  • Re: QML Circular Gauge Styling - Needle trailing colour/glow

    I am working with QML for some time but new to OpenGL. I was trying to understand how the fragmentShader is working in the reference reply. I tried to use he code to move the needle anti-clockwise. In that case the shader effect will be also anti clockwise, so I started from +145 deg instead of - 45 deg in the reference.

    fragmentShader: "
          uniform lowp float qt_Opacity;
          uniform highp float angleBase;
          uniform highp float angle;
          varying highp vec2 coord;
          void main() {
            gl_FragColor = vec4(0.0,0.0,0.0,0.0);
            highp vec2 d=2.0*coord-vec2(1.0,1.0);
            highp float r=length(d);
            if (0.25<=r && r<=0.75) {
              highp float a=atan2(d.x,-d.y);
              if (angleBase<=a && a<=angle) {
                highp float p=(a-angleBase)/(angle-angleBase);
                gl_FragColor = vec4(0.0,0.0,p,p) * qt_Opacity;
              }
            }
          }"


    The value of 'a' obtained from the 'atan2' function determines the angle 'theta' and draws withing the 'r' value of 0.25 a,d 0.75 with selected color, creating a background shader effect as the needle moves. But If I want to move the needle anticlockwise, as far as I understand the angle will be (pi - a) and baseAngle will be +2.53073 instead if -2.53073. But this doesn't work. Can someone help me to understand this code and how do I paint the other side of the needle (needle moving anti clockwise).



  • Hi. Here's the original clockwise dial from that linked post. Still works in 5.15's qmlscene.

    import QtQuick 2.2

    Rectangle {
      id: main
      width: 512
      height: 512
      color: 'black'

      // Put some text in the background just to check opacity
      Text {
        x: main.width/6.0-0.5*contentWidth
        y: main.height/2.0-0.5*contentHeight
        text: '30'
        color: 'white'
      }
      Text {
        x: main.width/2.0-0.5*contentWidth
        y: main.height/6.0-0.5*contentHeight
        text: '60'
        color: 'white'
      }
      Text {
        x: 5.0*main.width/6.0-0.5*contentWidth
        y: main.height/2.0-0.5*contentHeight
        text: '90'
        color: 'white'
      }

      // Shader effect to provide gradient-based gauge
      ShaderEffect {
        id: gauge
        anchors.fill: parent

        opacity: 0.75  // Making it totally opaque on leading edge obscures the number!

        // Angles measured clockwise from up, in range -pi to pi
        property real angleBase: -pi*0.75
        property real angle

        readonly property real pi: 3.1415926535897932384626433832795

        vertexShader: "
          uniform highp mat4 qt_Matrix;
          attribute highp vec4 qt_Vertex;
          attribute highp vec2 qt_MultiTexCoord0;
          varying highp vec2 coord;
          void main() {
            coord = qt_MultiTexCoord0;
            gl_Position = qt_Matrix * qt_Vertex;
          }"

        fragmentShader: "
          uniform lowp float qt_Opacity;
          uniform highp float angleBase;
          uniform highp float angle;
          varying highp vec2 coord;
          void main() {
            gl_FragColor = vec4(0.0,0.0,0.0,0.0);
            highp vec2 d=2.0*coord-vec2(1.0,1.0);
            highp float r=length(d);
            if (0.25<=r && r<=0.75) {
              highp float a=atan(d.x,-d.y);
              if (angleBase<=a && a<=angle) {
                highp float p=(a-angleBase)/(angle-angleBase);
                gl_FragColor = vec4(0.0,0.0,p,p) * qt_Opacity;
              }
            }
          }"
      }

      // Animate the gauge position
      SequentialAnimation {
        running: true
        loops: Animation.Infinite
        NumberAnimation {
          from: gauge.angleBase
          to: gauge.angleBase+1.5*gauge.pi
          duration: 1000
          target: gauge
          property: 'angle'
          easing.type: Easing.InOutSine
        }
        NumberAnimation {
          from: gauge.angleBase+1.5*gauge.pi
          to: gauge.angleBase
          duration: 1000
          target: gauge
          property: 'angle'
          easing.type: Easing.InOutSine
        }
      }
    }


    And here's a version which is the mirror image. It measures angles in the same sense (positive=clockwise, with zero "up"), but the "base" for the dial has moved over to the positive domain and the dial angle dials back from that:

    import QtQuick 2.2

    Rectangle {
      id: main
      width: 512
      height: 512
      color: 'black'

      // Put some text in the background just to check opacity
      Text {
        x: main.width/6.0-0.5*contentWidth
        y: main.height/2.0-0.5*contentHeight
        text: '90'
        color: 'white'
      }
      Text {
        x: main.width/2.0-0.5*contentWidth
        y: main.height/6.0-0.5*contentHeight
        text: '60'
        color: 'white'
      }
      Text {
        x: 5.0*main.width/6.0-0.5*contentWidth
        y: main.height/2.0-0.5*contentHeight
        text: '30'
        color: 'white'
      }

      // Shader effect to provide gradient-based gauge
      ShaderEffect {
        id: gauge
        anchors.fill: parent

        opacity: 0.75  // Making it totally opaque on leading edge obscures the number!

        // Angles measured clockwise from up, in range -pi to pi
        property real angleBase: pi*0.75  // Move dial baseline over to the right as we are going to dial backwards, anti-clockwise from here
        property real angle

        readonly property real pi: 3.1415926535897932384626433832795

        vertexShader: "
          uniform highp mat4 qt_Matrix;
          attribute highp vec4 qt_Vertex;
          attribute highp vec2 qt_MultiTexCoord0;
          varying highp vec2 coord;
          void main() {
            coord = qt_MultiTexCoord0;
            gl_Position = qt_Matrix * qt_Vertex;
          }"

        fragmentShader: "
          uniform lowp float qt_Opacity;
          uniform highp float angleBase;
          uniform highp float angle;
          varying highp vec2 coord;
          void main() {
            gl_FragColor = vec4(0.0,0.0,0.0,0.0);
            highp vec2 d=2.0*coord-vec2(1.0,1.0);
            highp float r=length(d);
            if (0.25<=r && r<=0.75) {
              highp float a=atan(d.x,-d.y);
              if (angle<=a && a<=angleBase) {   // Shaded domain changes to be below dial baseline
                highp float p=(a-angleBase)/(angle-angleBase);
                gl_FragColor = vec4(0.0,0.0,p,p) * qt_Opacity;
              }
            }
          }"
      }

      // Animate the gauge position
      SequentialAnimation {
        running: true
        loops: Animation.Infinite
        NumberAnimation {
          from: gauge.angleBase
          to: gauge.angleBase-1.5*gauge.pi  // We will be rotating back anti-clockwise
          duration: 1000
          target: gauge
          property: 'angle'
          easing.type: Easing.InOutSine
        }
        NumberAnimation {
          from: gauge.angleBase-1.5*gauge.pi  // We will be rotating back anti-clockwise
          to: gauge.angleBase
          duration: 1000
          target: gauge
          property: 'angle'
          easing.type: Easing.InOutSine
        }
      }
    }

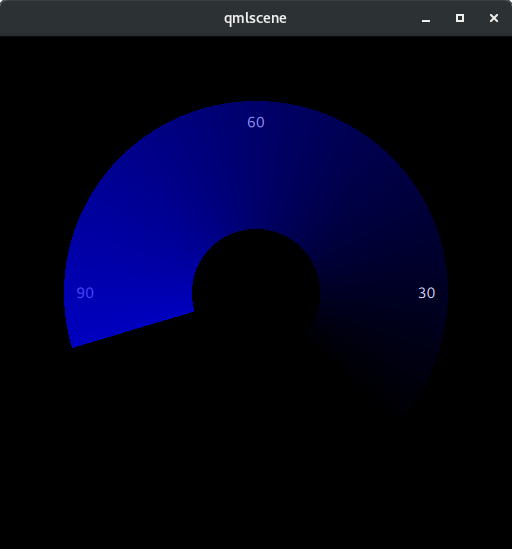

    Looks like this:

    To make it clear how I've adapted it, here's the diffs between the two files:

    $ diff dial.qml dial-ccw.qml
    13c13
    <     text: '30'
    ---
    >     text: '90'
    25c25
    <     text: '90'
    ---
    >     text: '30'
    37c37
    <     property real angleBase: -pi*0.75
    ---
    >     property real angleBase: pi*0.75  // Move dial baseline over to the right as we are going to dial backwards, anti-clockwise from here
    63c63
    <           if (angleBase<=a && a<=angle) {
    ---
    >           if (angle<=a && a<=angleBase) {   // Shaded domain changes to be below dial baseline
    77c77
    <       to: gauge.angleBase+1.5*gauge.pi
    ---
    >       to: gauge.angleBase-1.5*gauge.pi  // We will be rotating back anti-clockwise
    84c84
    <       from: gauge.angleBase+1.5*gauge.pi
    ---
    >       from: gauge.angleBase-1.5*gauge.pi  // We will be rotating back anti-clockwise



    As a general principle: if I have something working on the basis of one particular coordinate system (in this case, the idea that angles are measures clockwise from zero at vertical up), then I generally find changes are easier continuing to work in that coordinate system and expressing the new behaviour in it, rather than trying to establish a new coordinate system. I find that works best for me anyway!

    Obviously for a more real implementation a dial component would probably expose some generic 0-1 property controlling the position (property real value, say) and the angle property would be an internal detail bound to angleBase+value*1.5*pi or angleBase-value*1.5*pi respectively in the clockwise and counter-clockwise versions.
