Writing to the serial port crashes my application



  • Debug Trace leads me to below mentioned call
    // return write(data.constData(), data.size());
    mostly looks like the QByteArray issue. This issue happens 3 out of 5 times

    Qt Version used Qt 5.3.0 MinGW 32bit

    Any solution to this?? Thanks!


  • Qt Champions 2018

    @asthana said in Writing to the serial port crashes my application:

    mostly looks like the QByteArray issue

    Then try return write(data); instead. No need to pass QByteArray internals


  • Lifetime Qt Champion

    Hi and welcome to the forums.
    You can try to upgrade to a newer version of Qt and see if it was fixed.



  • @VRonin Hi,
    this is what the code i use
    int size = mSerialManager->controlPort->write(data);

    but on crash it goes to that line what I mentioned


  • Qt Champions 2018

    @asthana

    You need to check that mSerialManager and controlPort are valid pointers.


  • Lifetime Qt Champion

    @asthana
    If you place a breakpoint and inspect the pointers.
    They are both valid ?
    mSerialManager / controlPort
    ?



  • @mrjj
    Hi,
    yeah i always check for that whether that port is null or not open
    if( mSerialManager->controlPort->isOpen())
    {
    // code
    }


  • Qt Champions 2018

    @asthana It's not about checking whether it is open or not. It is about checking the pointers before dereferencing them - dereferencing an invalid pointers crashes application.



  • @jsulm
    yeah, I check for the pointer being valid and not null by using below code , open was just another check that I recently introduced...
    if( mSerialManager->controlPort != NULL)
    {
    QByteArray data = Datamanager::getInstance()->getItemFromOutQueueCtrl();
    int size = mSerialManager->controlPort->write(data);
    }


  • Qt Champions 2018

    @asthana said in Writing to the serial port crashes my application:

    int size = mSerialManager->controlPort->write(data);

    Does it crash at this line?



  • exactly, as per debug trace it goes to the qt internal function call i.e
    inline qint64 write(const QByteArray &data)
    { return write(data.constData(), data.size()); } in QIODevice.h and segmentation fault.
    and checked the size of data as well its never zero.



  • Hi, I'm guessing that the QByteArray is torned down before all the bytes are transmitted, you could try to use a waitForBytesWritten() before the destructor of the QByteArray:

    if( mSerialManager->controlPort != NULL)
    {
        QByteArray data = Datamanager::getInstance()->getItemFromOutQueueCtrl();
        int size = mSerialManager->controlPort->write(data);
        mSerialManager->controlPort->waitForBytesWritten(-1);
    }


    or you could turn the QByteArray into a static one:

    if( mSerialManager->controlPort != NULL)
    {
        static QByteArray data = Datamanager::getInstance()->getItemFromOutQueueCtrl();
        int size = mSerialManager->controlPort->write(data);
    }


  • Qt Champions 2018

    @asthana said in Writing to the serial port crashes my application:

    if( mSerialManager->controlPort != NULL)

    And where do you check for mSerialManager != nullptr? Or is it guaranteed that it can never be nullptr? And is controlPort really correctly initialized and not a dangling pointer?



  • @hskoglund
    "mSerialManager->controlPort->waitForBytesWritten(-1);" actually slows down the application and since I am communication it to User Interface for display , the screen hangs and don't show any activity for sometime. I also tried giving a delay through this
    i.e "waitForBytesWritten(20)" this works fine in terms of screen updates but still it crashes.

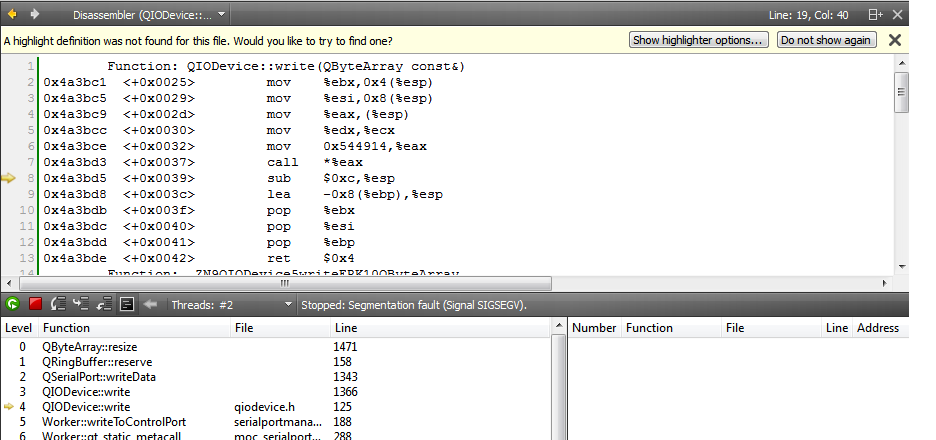

  • Debug Trace

    Function: QIODevice::write(QByteArray const&)
    0x4a3bc1 <+0x0025> mov %ebx,0x4(%esp)
    0x4a3bc5 <+0x0029> mov %esi,0x8(%esp)
    0x4a3bc9 <+0x002d> mov %eax,(%esp)
    0x4a3bcc <+0x0030> mov %edx,%ecx
    0x4a3bce <+0x0032> mov 0x544914,%eax
    0x4a3bd3 <+0x0037> call *%eax
    0x4a3bd5 <+0x0039> sub $0xc,%esp
    0x4a3bd8 <+0x003c> lea -0x8(%ebp),%esp
    0x4a3bdb <+0x003f> pop %ebx
    0x4a3bdc <+0x0040> pop %esi
    0x4a3bdd <+0x0041> pop %ebp
    0x4a3bde <+0x0042> ret $0x4
    Function: _ZN9QIODevice5writeERK10QByteArray
    0x4a3be1 <+0x0045> nop
    0x4a3be2 <+0x0046> nop
    0x4a3be3 <+0x0047> nop

    Please find the attched screenshot for the same
    0_1554275625743_Debug Logs.png


  • Qt Champions 2018

    @asthana I don't think the QByteArray is the problem.

    Please rather check @Christian-Ehrlicher's suggestion:

    And where do you check for mSerialManager != nullptr? Or is it guaranteed that it can never be nullptr? And is controlPort really correctly initialized and not a dangling pointer?

    That seems much more a possible cause for your problem.

    Regards



  • I assume that you use a multiple threads (as I can see from your screenshoot with the 'Worker' class). If so, then you do it wrong... It is my assumption.


  • Moderators

    @aha_1980
    actually it can be,
    from the looks of it, the serial port is threaded ( I take this from the naming of the class and the thread count)

    And from the looks of it, Datamanager::getInstance()->getItemFromOutQueueCtrl(); may very well become invalid during the write process. As it seams to be a singleton and may be accessed by different threads?
    One shouldn't do that, but it won't result in a compiler error.



  • @kuzulis
    Yeah, there are two threads that read and write to the port, so to check on that I stopped sending any data from User Interface(UI) that my application was reading and only write the data to the port which is sent to UI .
    But still the problem is there.



  • @asthana ,

    Just read about the right way using the threads. You should to create the QSP instance and to call its methods only from the same thread.

    E.g. if your worker was created in context of thread #2, then Worker::writeToControlPort() should be called too from the context of thread #2. Check the right thread id, just use QThread::currentThreadId() in ctor of Worker and inside of Worker::writeToControlPort() to see that this ID same.

    PS: Read documentation, it is a main advice to you, before asking on a forum!!! It is simple...



  • @kuzulis said in Writing to the serial port crashes my application:

    QThread::currentThreadId()

    I hope that I am not making any mistake, please find the code for your reference

    1. //Created in the constructor of the SerialPortManager Class

      // do the control serial port reading in a thread
      Worker* readCtrl = new Worker(this);
      readCtrl->moveToThread(&readThreadControl);
      connect(&readThreadControl, &QThread::finished, readCtrl, &QObject::deleteLater);
      connect(this, SIGNAL(startCtrlRead()), readCtrl,SLOT(readFromControlPort()));
      readThreadControl.start();

      // do the control serial port writing in a thread
      Worker* writeCtrl = new Worker(this);
      writeCtrl->moveToThread(&writeThreadControl);
      connect(&writeThreadControl, &QThread::finished, writeCtrl, &QObject::deleteLater);
      connect(this, SIGNAL(startCtrlWrite()), writeCtrl,SLOT(writeToControlPort()));
      writeThreadControl.start();

    So here are two threads created on for read and write

    How read works

    1.Main Thread has a connect call that listens to any data coming to the serial port
    connect(controlPort, SIGNAL(readyRead()), this, SLOT(readDataFromCtrl()));

    2. void SerialPortManager::readDataFromCtrl()
    { emit startCtrlRead();}

    Here at this point read worker thread is called.

    3. void Worker::readFromControlPort()
    {
    if( mSerialManager->controlPort != NULL)
    {
    QByteArray data = mSerialManager->controlPort->readAll();
    Datamanager::getInstance()->addToInQueueCtrl(data);
    }
    }
    4.void Datamanager::addToInQueueCtrl(QByteArray msgData)
    {
    mInQueueCtrl.append(msgData);
    emit inQueueCtrlHasItem();
    }
    So from here we can read the data from the queue

    How Write works

    1. The data is framed and added to the write queue.
      Datamanager::getInstance()->addToOutQueueCtrl(msgData);

    2. addToOutQueueCtrl() emits the signal which is handled by the write worker thread and SLOT writeToControlPort() is called .

    3. void Datamanager::addToOutQueueCtrl(QByteArray msgData)
      {
      mOutQueueCtrl.append(msgData);
      emit outQueueCtrlHasItem();
      }

    4. connect(Datamanager::getInstance(),SIGNAL(outQueueCtrlHasItem()),
      serialPortManager,SLOT(writeDataToCtrl()));

    5. void SerialPortManager::writeDataToCtrl()
      {
      emit startCtrlWrite();
      }

    6. Here is what write worker thread executes the SLOT and write the data to port

    7. void Worker::writeToControlPort()
      {
      if( mSerialManager->controlPort != NULL)
      {
      while( !Datamanager::getInstance()->isOutQueueCtrlEmpty())
      {
      QByteArray data = Datamanager::getInstance()->getItemFromOutQueueCtrl();
      int size = mSerialManager->controlPort->write(data);
      if( size > 0)
      {
      qDebug() << "Control Serial Port Write Succesful: " << size ;
      }
      else
      {
      qDebug() << "Control Serial Port Write Error: " << size ;
      }
      }
      }
      else
      {
      qDebug() << "NO Serial Port Connection to Write ";
      }
      }

    I can understand that it can be common thread problem, but it was working fine for a long time .
    I will check for the thread ID as well to make sure on that part.



  • I don't want to understand your code, you should do it himself, sorry.



  • @kuzulis
    You yourself pitched into, I didn't ask for your help. Neways Thanks
